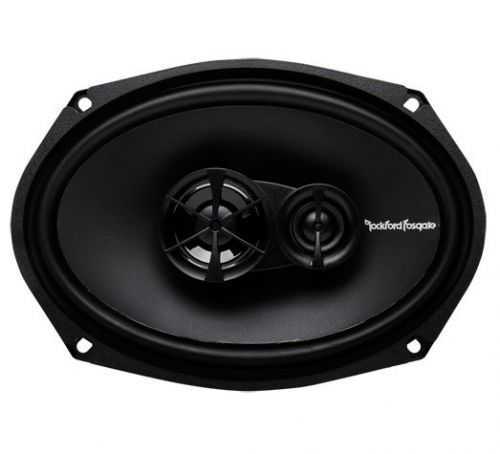

The R169X3 is a 6”x9” 3-way full-range speaker rated at 65 watts RMS for a new generation of factory replacement speakers. Kit includes integrated high-pass crossovers and mounting hardware.
-
Vacuum Polypropylene cone
-
Rubber surround
-
Stamped steel basket
-
Silk dome pole mounted Piezo tweeter and midrange
-
Integrated tweeter crossover
-
Grilles and mounting hardware included
-
1 Year Standard Warranty warranty info
SPECIFICATIONS:
-
CEA-2031 Compliant
-
Configuration: 3-Way
-
Nominal Impedance (Ohms): 4-Ohm
-
Frequency Response (Hz): 47Hz - 20kHz
-
Midrange Nominal Diameter (cone/diaphragm): 6"x9"
-
Midrange Mounting Depth: 2.85" (72.4 mm)
-
Tweeter Nominal Diameter (dome/diaphragm): 0.50" (12.7 mm)
-
Power Handling (RMS): 65 Watts RMS
-
130 Watts MAX Crossover: Tweeter High-Pass (HP): 6dB
-
Sensitivity (dB @ 1W/1M): 90
-
Grille/Trim Ring Included: Yes
-
Mounting Hardware: Yes
-
Shipping Weight: 6.6 Lbs. (2.99 kg.)
